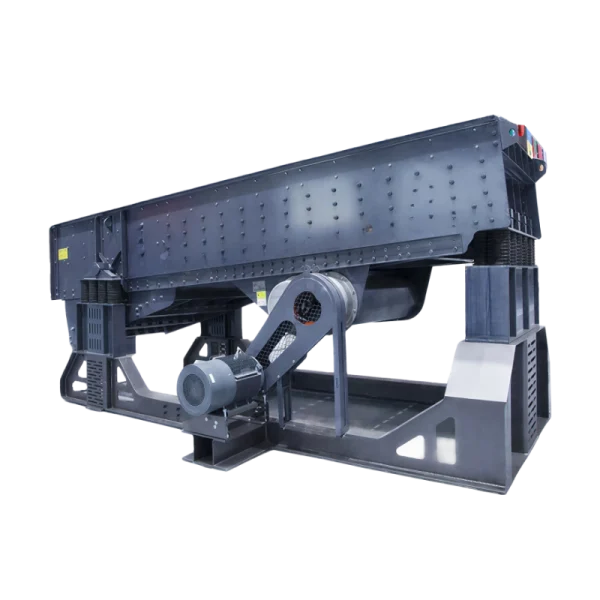

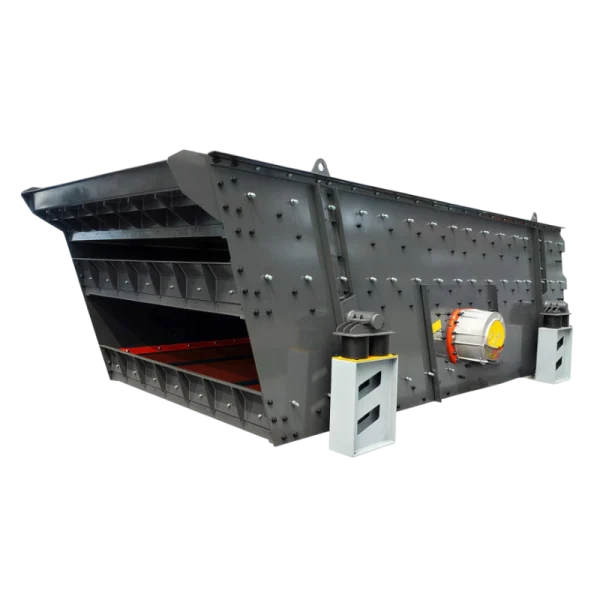

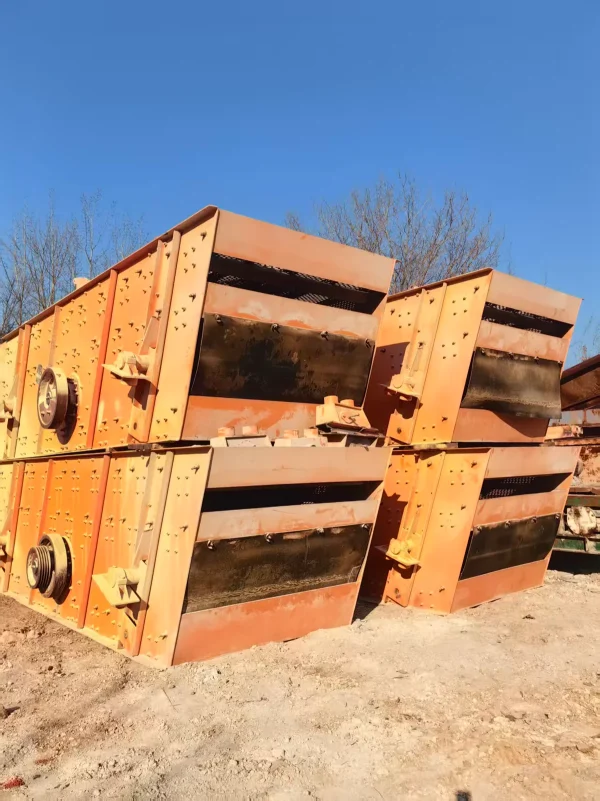

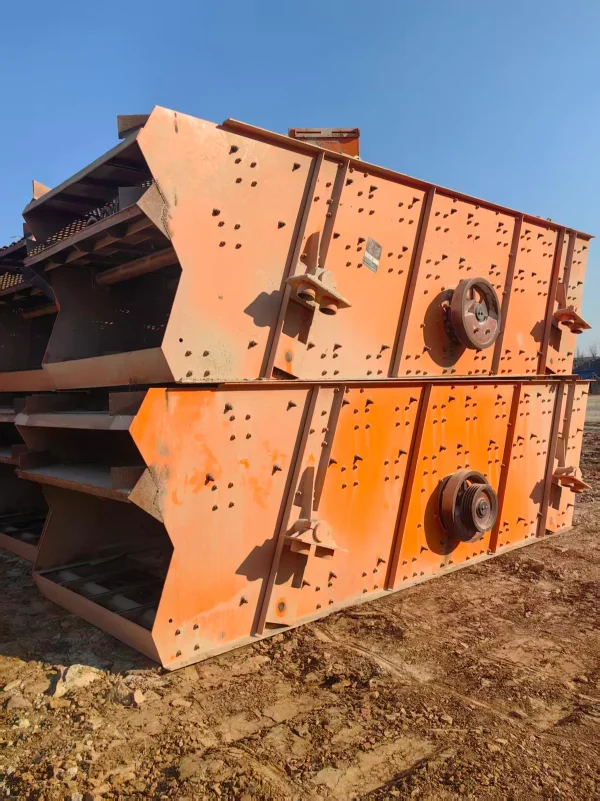

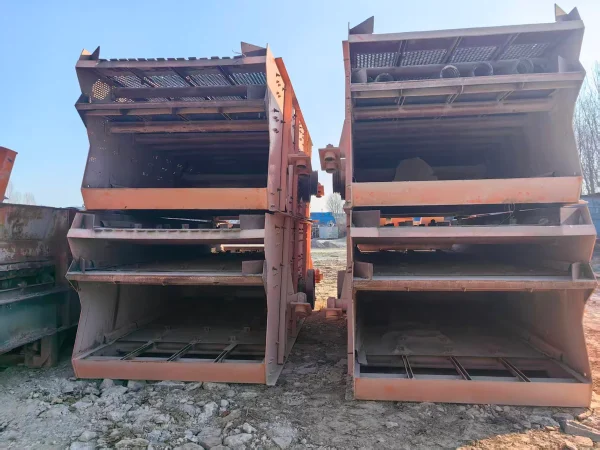

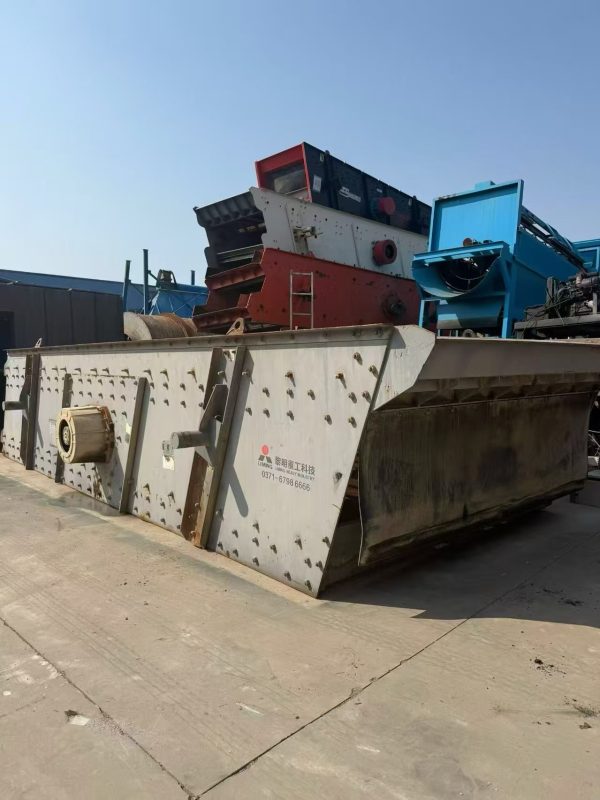

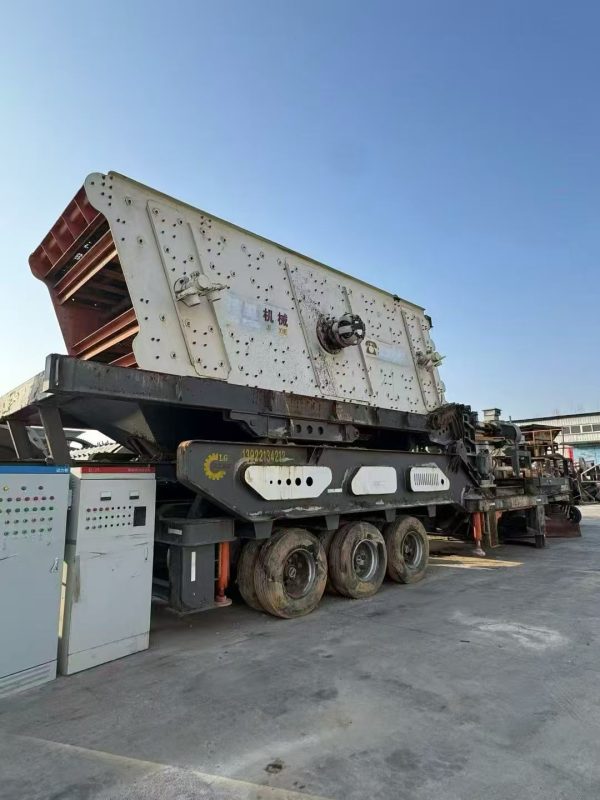

Used YK Series Circular Vibrating Screen (Grease / Oil Lubrication Available)

Working principle

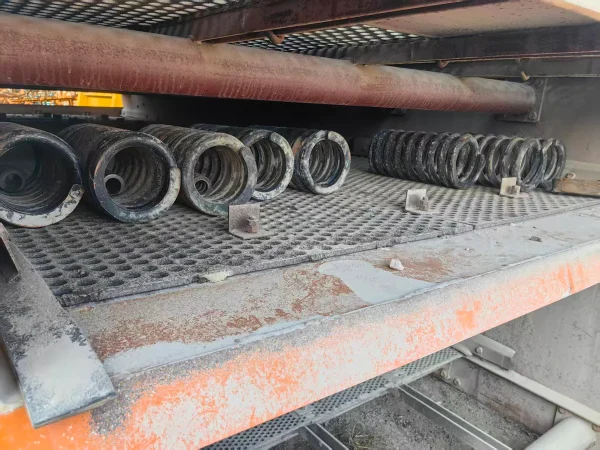

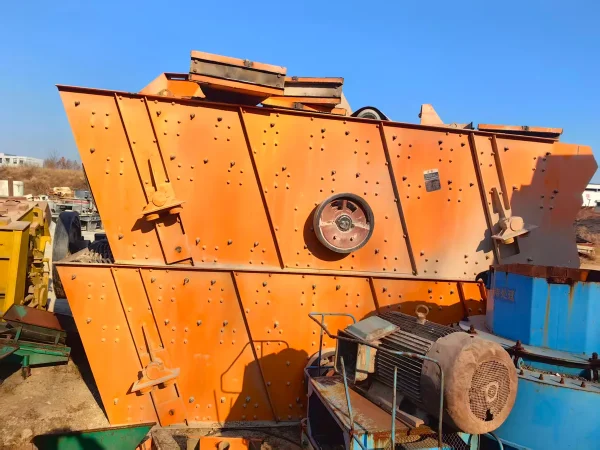

The YK circular vibrating screen mainly consists of a screen box, spring support assembly, support, vibrator, transmission device, motor, and transmission device support.

The YK circular vibrating screen uses springs as the supporting elastic element and an eccentric block vibrator as the vibration source. The rotation of the eccentric block generates excitation force, causing the screen box to reciprocate in a circular motion. Material continuously bounces and tumbles in a near-circular motion on the inclined screen surface. By repeatedly comparing itself with the screen openings, material smaller than the opening size passes through the screen, while material larger than the opening size remains on the screen surface, thus completing the screening process.

Product Selling Points

Modular design, highly versatile

Equipped with a modular SV vibrator, the vibration intensity reaches up to 4.2G, with strong processing capacity and high screening efficiency. Replacement only takes one hour. At the same time, the modular design reduces the types of spare parts and increases the degree of versatility.

The overall frame structure has a strong load-bearing capacity.

The structure is built with an integral frame, which has a stronger load-bearing capacity compared with the traditional single beam design; and with the support of finite element strength analysis technology, it ensures a balanced design in terms of weight and strength.

High-strength protection system, safe and stable.

Flexible drive protects the motor from impact; vibrator and pulley guards provide added safety; polyurethane guards, pressure strips, and support strips prevent wear.

Laser cutting technology eliminates the risk of cracking.

The side panels are made using whole-plate laser cutting technology, eliminating any form of welding. All reinforcing components use high-strength torsion shear bolts, making installation more convenient and providing higher strength, while avoiding the cracking risks caused by traditional welding methods.

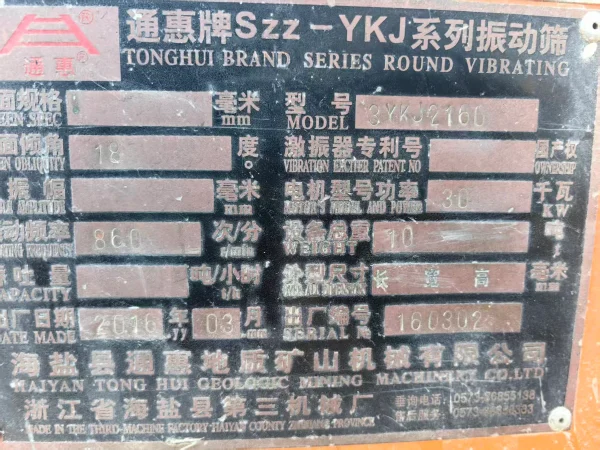

Product Parameters

Model Number	Screen Surface Size (mm)	Number of Layers	Screen Inclination Angle(°)	Screen Aperture Size (mm)	Maximum Feed Particle Size(mm)	Vibration Frequency(r/min)	Dual Amplitude(mm)	Processing Capacity(t/h)	Power(kW)
YK1545-2	1500×4500	2	18(18-25)	2-70	200	800-900	7-12	45-380	11
YK1545-3	1500×4500	3	18(18-25)	2-70	200	800-900	7-12	45-380	15
YK1845-2	1800×4500	2	18(18-25)	2-70	200	800-900	7-12	60-450	15
YKS5X1845-3	1800×4500	3	18(18-25)	2-70	200	800-900	7-12	60-450	22
YK1860-2	1800×6000	2	18(18-25)	2-70	200	800-900	7-10	75-600	15
YK1860-3	1800×6000	3	18(18-25)	2-70	200	800-900	7-12	75-600	30
YK1860-4	1800×6000	4	18(18-25)	2-70	200	800-900	7-12	75-600	37
YK2160-2	2100×6000	2	18(18-25)	2-70	200	800-900	7-12	85-700	22
YK2160-3	2100×6000	3	18(18-25)	2-70	200	800-900	7-12	85-700	30
YK2160-4	2100×6000	4	18(18-25)	2-70	200	800-900	7-11	85-700	37
YK2460-2	2400×6000	2	18(18-25)	2-70	200	800-900	7-12	100-800	22
YK2460-3	2400×6000	3	18(18-25)	2-70	200	800-900	7-11	100-800	30
YK2460-4	2400×6000	4	18(18-25)	2-70	200	800-900	7-10	100-800	37
YK2760-2	2700×6000	2	18(18-25)	2-70	200	800-900	7-12	120-900	30
YK2760-3	2700×6000	3	18(18-25)	2-70	200	800-900	7-11	120-900	37
YK3072-2	3000×7200	2	20(20-25)	2-70	200	800-900	7-11	150-1200	37
YK3075-2T	3000×7200	2	20(20-25)	2-150	300	800-900	7-12	180-1800	22×2
YK3075-3T	3000×7200	3	20(20-25)	2-150	300	800-900	7-12	180-1800	30×2
YK3680-2T	3600×7500	2	21(20-25)	2-150	300	800-900	7-12	225-2250	30×2
YK3680-3T	3600×7500	3	20(20-25)	2-150	300	800-900	7-12	225-2250	37×2

*Technical data is for reference only.
